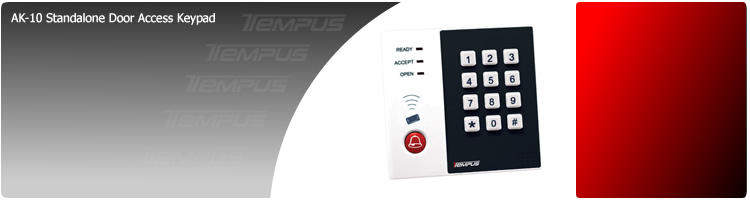

AK-10 Standalone Door Access Keypad

The AK-10 uses a very reliable microprocessor to operate door strikes and security systems that require a momentary (timed) or latching dry contact closure. All programming is done through the keypad. Codes and operating parameters are stored within the non-volatile memo. The AK-09 has 1 master and can store up to 500 user codes with proximity cards.
  • 1 Master 4 Digit Engineering Code
  • 500 User 4 Digit Codes & Proximity Cards
  • Programmable Door Relay Time
  • Programmable Keypad Panic Code
  • Programmable External Alarm Time
  • Door Open Detection
  • Non-volatile Memory
  • Cover Anti-tamper Switch
  • 1 Relay Output, with 5 Amp Contacts
  • External Door Bell Connection
Product FEATURES:
ELECTRICAL
ENGINEER PROGRAMMING
MECHANICAL
APPROVALS
NOTES
Primary Operating Voltage: 12Vdc Changing Engineer Code Electric Door Strike Housing ABS/PC Suitable for:
Current Consumption: 100mA maximum Entering User Codes Remote Door Control Dimension: 120 X 115 X 23mm Residential
Door Relay: Form A, 10Amp 12Vdc, Form C 5Amp 12Vdc Door Relay Strike Time Door Open Detection Size: 120 X 115 X 23mm Commercial
Tamper Protection: Negative Loop, Normally Closed Door Open Detection Time External Door Bell
Memory: Non Volatile Eeprom Alarm Time

External Alarm


 Operating Temperature: 0°C – 60 C° User Security Arrangement
Product Downloads:
download Instuction manual . Download Leaflet . download Installation manual .


Design and specification are subject to change with out prior notice
