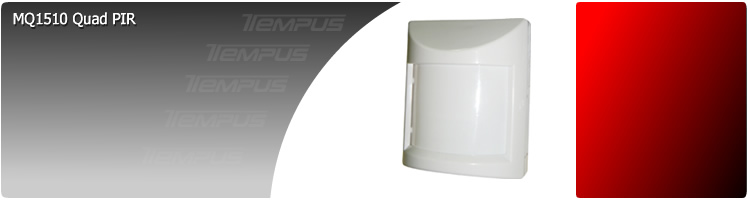

FEATURES MQ1510 Quad Passive Infrared Receiver

The MQ1510 is a high performance microprocessor based Quad Element PIR detector featuring Digital Amplifier technology reducing electronic noise and increasing reliability. The High Sensitivity Pyrosensor together with the Digital Amplifier enables fast detection performance and minimal range reduction at high temperatures.
  • High Sensitivity Quad Element Pyrosensor
  • Digital Amplifier
  • Microprocessor based
  • 10 bit Analogue Digital Conversion ACD
  • Extended Temperature Performance
  • Digital Signal Processing DSP
  • 15m 110° Volumetric Range
  • Opto Isolated Solid State Relay
  • Digital Pulse count 1, 2 Alternative Polarity (AP), 3 Jumper Selectable
  • LED Enable Input and via Jumper
  • Bracket conforming to CE requirements included
Product FEATURES:
ELECTRICAL
ENGINEER PROGRAMMING
MECHANICAL
APPROVALS
NOTES
Operating Voltage: 9-16V DC Alarm Period: >2 seconds Case Material: 3mm ABS-PC CE Grade II Suitable for:
Operating Current: 6mA Detection Speed: 0.3 - 3ms Weight: 52g   Residential
Alarm Contacts: N/C Solid State 60VDC 50mA Operating Temperature: -10 to +50°C Product: 72mm x 59mm x 44mm   Commercial
Tamper: 16V 50mA maximum Storage Temperature: -10 to +50°C Carton:   Industrial
RFI Immunity: Exceeds CE requirements Range: 15m 110° Volumetric x100 Pack:   Warranty: 5 years
  Mounting Height: 2m Small Container Quantity:
Product Downloads:
download Installation manual . Download Leaflet .


Design and specification are subject to change with out prior notice
