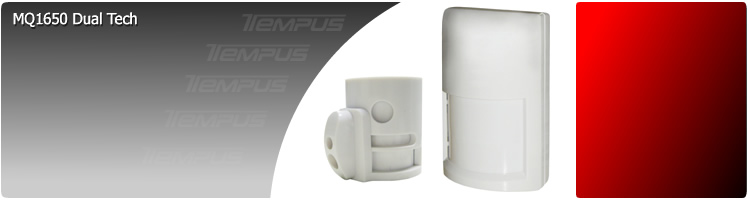

FEATURES pQ1650 Dual Technology detector

The PQ1650 is a high performance microprocessor based Microwave and PIR detector featuring Digital Amplifier Technology reducing electronic noise and increasing reliability. The High Sensitivity Pyrosensor together with the Digital Amplifier enables fast detection performance and minimal range reduction at high temperatures. The Microwave section uses digital range adjustment and Frequency and Amplitude algorithms for false trigger rejection and coverage is matched to the PIR.
  • High Sensitivity Quad Element Pyrosensor
  • Advance Microprocessor Design
  • Digital Amplifier
  • 10 bit PIR/ 10 bit MW Analogue Digital Conversion (ACD)
  • Digital Signal Processing (DSP) Microwave and PIR
  • Extended Temperature Performance
  • Microwave Fail Indication
  • Detection Angle 110°
  • 15m Volumetric Range with Microwave Range Adjustment
  • Digital Pulse Count 1, 2 Alternative Polarity (AP), 3 Jumper Selectable
  • LED Indication, Blue (Alarm), Red (PIR), Yellow (Microwave)
  • LED Enable Input and via Jumper Selectable
  • Universal Wall, Ceiling Mounting Bracket, Conforming to CE Requirements
Product FEATURES:
ELECTRICAL
ENGINEER PROGRAMMING
MECHANICAL
APPROVALS
NOTES
Operating Voltage: 9-16V DC Alarm Period: >2 seconds Case Material: 3mm ABS-PC CE Grade II Suitable for:
Operating Current: 6mA Detection Speed: 0.3 - 3ms Weight: 82g   Residential
Alarm Contacts: N/C Solid State 60VDC 50mA Operating Temperature: -10 to +50°C Product: 98mm x 68mm x 43mm   Commercial
Tamper: 16V 50mA maximum Storage Temperature: -10 to +50°C Carton: 100 pieces:   Industrial
RFI Immunity: Exceeds CE requirements Range: 15m 110° Volumetric     Warranty: 5 years
Microwave Frequency: 10GHz X Band Mounting Height: 2m
Product Downloads:
download Installation manual . Download Leaflet .


Design and specification are subject to change with out prior notice
